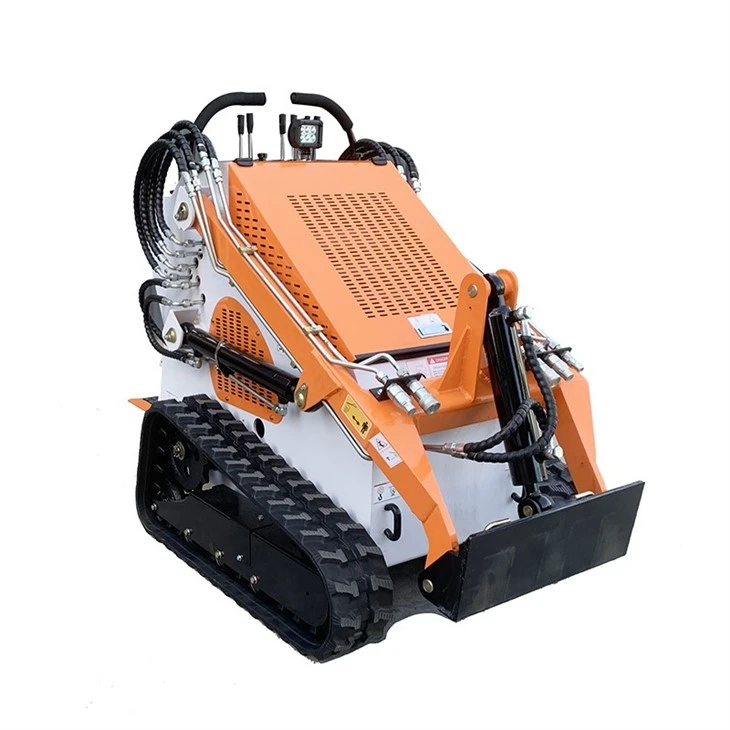

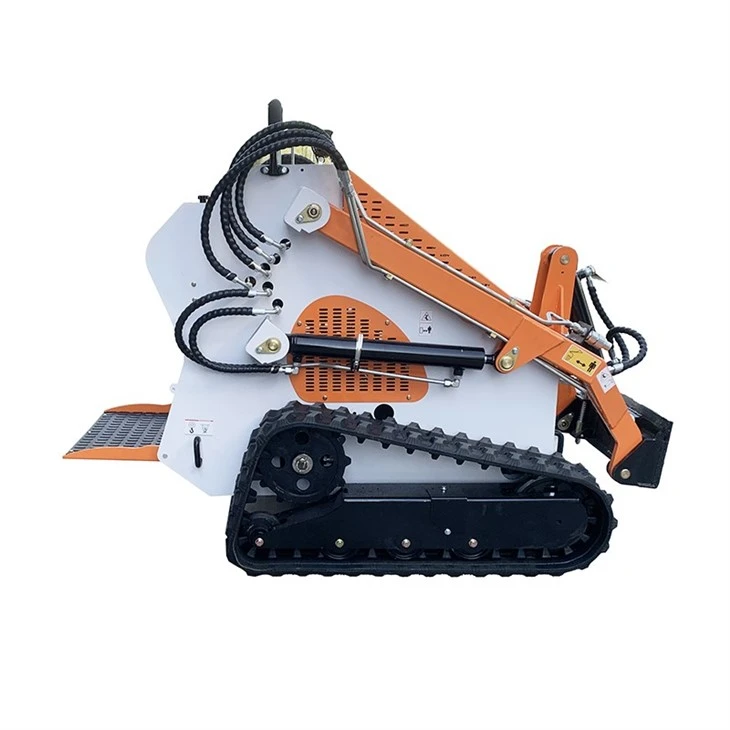

CDS23T Mini skid steer loaders yog cov tshuab zoo siab uas tuaj yeem ua haujlwm ntau yam ntawm cov chaw tsim kho, vaj, ua liaj ua teb, thiab lwm qhov chaw sab nraum zoov. Cov compact, muaj zog, thiab ntau yam loaders muaj ntau yam txiaj ntsig uas ua rau lawv muaj kev xaiv nrov ntawm cov kws tshaj lij thiab cov tswv tsev ib yam nkaus. Mini skid steer loaders yog cov khoom muaj nqis rau txhua qhov haujlwm sab nraum zoov uas xav tau kev ua haujlwm zoo, kev ua tau zoo, thiab ntau yam. Lawv muab cov kev daws teeb meem zoo rau cov tswv tsev, cov lag luam, thiab cov kws tshaj lij hauv ntau qhov kev lag luam, thiab ua kom cov haujlwm nyuaj yooj yim dua thiab nyab xeeb dua.
Nta:
1.CDS23T Mini skid steer loader yog tus qauv nrog Briggs & Stratton EPA4 roj av cav.
2. US WHITE Hydraulic Tsav lub cev muaj zog thiab lub twj tso kua mis txais cov khoom lag luam ltalis ZANEDA, uas ua rau qhov zoo tshaj plaws.
3. Cov txheej txheem pleev xim zoo tuaj yeem tiv thaiv corrosion
4. Loj dua 300kg loading peev.
5. Hydrostatic tsav tsheb, muaj nrog cov ntawv txuas sib txawv, tuaj yeem siv rau ntau yam haujlwm
Taw qhia:
Cathdeer nyob hauv xeev Shandong, uas yog kev ua liaj ua teb thiab kev tsim kho Kev lag luam saw sib sau ua ke, thiab cov tuam txhab txhawb nqa tau ua tiav thiab paub tab. Qhov no yog vim li cas Cathdeer muaj qhov zoo ntawm kev siv tshuab thiab tus nqi tshaj li lwm tus neeg muag khoom.
Peb yeej tsis caum tus nqi qis tshaj, qhov peb nrhiav yog tus nqi ua haujlwm, thiab muab tus nqi zoo dua nyob rau hauv qhov chaw ntawm kev ua kom zoo thiab kev pabcuam.
Parameter:
|
Qauv |
CDS 23 T |
|
Rated Load (kg) |
300 |
|
Max. Tsav ceev (km / h) |
0-6 |
|
Hydraulic ntws (L / min) |
25-70 |
|
Khiav qauv |
180X36X72 |
|
Rated zog (Kw) |
16.9 |
|
Roj tank ntim (L) |
25 |
|
Qhov hnyav ntawm tus kheej lub thoob (kg) |
1260 |
|
Pob muaj peev xwm (m3) |
0.15 |
|
Max. Kev khiav hauj lwm qhov siab (mm) |
2450 |
|
Qhov siab rau lub thoob pob khawm tus pin (mm) |
1880 |
|
Qhov siab (mm) |
1350 |
|
Ntev tsis muaj thoob (mm) |
1685 |
|
Length nrog thoob (mm) |
2206 |
|
Tawm lub kaum sab xis ntawm Max. qhov siab (degree) |
34 |
|
Tawm qhov siab (mm) |
1510 |
|
Tshaj tawm qhov nrug (mm) |
450 |
|
Rollback ntawm thoob rau hauv av (degree) |
27 |
|
Rollback ntawm lub thoob ntawm qhov siab (degree) |
100 |
|
Wheelbase (mm) |
850 |
|
Av clearance (mm) |
150 |
|
Pem hauv ntej tig radius (mm) |
1245 |
|
rear qag rau bumper (mm) |
280 |
|
Dav (mm) |
1150 |
|
Lub thoob dav (mm) |
1200 |
