2.8 tuj excavator yog cov cuab yeej tsim kho uas tau teeb tsa rau ntawm lub platform txav nrog lub thoob, boom lossis thoob nyob ntawm daim ntawv thov. Cov excavators no pab ua kev tsim kho kom zoo nkauj, khawb, demolition, xaiv thiab qhov chaw, tuav cov khoom, kev tsim kho thiab lwm yam. Tsis tas li ntawd, mini excavators pab nrog kev ua haujlwm hnyav lossis ua haujlwm yav dhau los nrog cov cuab yeej siv hnyav.
Nta:
- Peb 2.8 t excavator yog tus qauv nruab nrog Yanmar Euro5 / EPA4 lub cav, yog tias koj lub teb chaws muaj cov kev cai emission, qhov excavator no yuav haum rau koj.
- Nws yog txawm peem rau nrog kaw cabin thiab rhaub raws li tus qauv, thiab muaj peev xwm yuav nruab nrog cua txias, txawm tias koj nyob rau hauv ib tug txias los yog kub, qhov no excavator yog ib tug zoo xaiv.
- Sab laug 53 degree thiab sab xis 57 degree deflection boom ua rau peb 2.8 t excavator ua haujlwm yooj yim.
- Zero Tail tsim. Koj tuaj yeem ua haujlwm hauv thaj chaw muaj neeg coob. Cov excavators no yooj yim maneuverability uas txo cov kev puas tsuaj rau cov tshuab, tsev, laj kab thiab lwm yam kev cuam tshuam thaum ua haujlwm ze rau lawv.
Taw qhia:
Cathdeer nyob rau hauv Shandong xeev, uas yog lub me me excavator Industrial saw sib sau ua ke qhov chaw. OEM rau cov npe nrov excavator xws li Komatsu thiab Doosan, thiab cov tuam txhab txhawb nqa ntawm excavators tau ua tiav thiab paub tab. Qhov no yog vim li cas Cathdeer muaj qhov zoo ntawm kev siv tshuab thiab tus nqi tshaj li lwm tus neeg muag khoom.
Peb yeej tsis caum tus nqi qis tshaj, qhov peb nrhiav yog tus nqi ua haujlwm, thiab muab tus nqi zoo dua nyob rau hauv qhov chaw ntawm kev ua kom zoo thiab kev pabcuam.
Parameter:
|
SPECIFICATION |
|
|
Tshuab Luj (kg) |
2640 |
|
Standard thoob (cbm) |
0.05 |
|
Cav |
Yanmar 3TNV80-SPSY2 |
|
Rated zog (kw / r / min) |
14.6 /2400 |
|
Kev tshem tawm (L) |
1.267 |
|
Lub cev muaj zog |
Yantai Eddie hom 12A |
|
Swing ceev |
9rpm ua |
|
Lub cev muaj zog |
Eaton 6H2000 |
|
Rated ceev |
1.4km / h (tsawg), 2.7 km / h (siab) |
|
Max. Qib muaj peev xwm |
30 degree |
|
Pump hom |
Plunger twj tso kua mis |
|
Pump siab |
22 MPa |
|
Pump Flow tus nqi |
61.6L / min |
|
Diesel tank |
22L |
|
Hydraulic roj tank |
25.3L |
|
Cav roj |
3.4L |
|
MAIN DEMENSIONS |
|
|
Zuag qhia tag nrho (LxWxH) |
3918x1454x2469 mm |
|
Wheelbase |
14 40mm |
|
Tag nrho qhov ntev ntawm txoj kab |
1 892mm |
|
Upper chassis av clearance |
5 35mm |
|
Counterweight tig radius |
8 85mm |
|
Khiav dav |
250 hli |
|
Taug qab qhov siab |
4 55mm |
|
Qhov siab ntawm lub rooj rau hauv av |
1 904mm |
|
Boom viav vias - sab laug |
5 39mm |
|
Boom swing - txoj cai |
4 77mm |
|
Kev khiav hauj lwm RANGE |
|
|
Max. khawb qhov tob |
2 396mm |
|
Max. Vertical khawb qhov tob |
2 093mm |
|
Max. khawb qhov siab |
4 153mm |
|
Max. Muab pov tseg qhov siab |
2 909mm |
|
Max. khawb lub vojvoog hauv av |
4 168mm |
|
Max. khawb lub vojvoog |
4 290mm |
|
Min. Rotation vojvoog |
1 857mm |
|
Max. Lifting qhov siab ntawm dozer hniav |
257mm ua |
|
Max. Kev khawb qhov tob ntawm bulldozer hniav |
4 13mm |

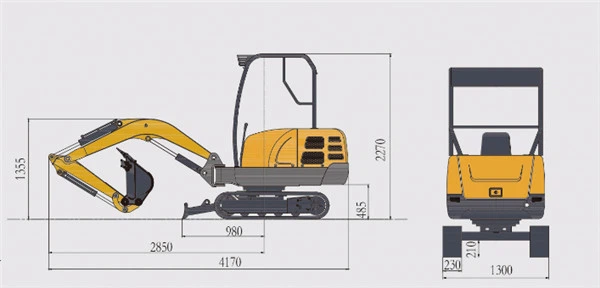

Dimension:
Cim npe nrov: 2.8 tuj excavator, Tuam Tshoj 2.8 tuj excavator manufacturers, hoobkas
